Welcome to our comprehensive guide on the world of motor wiring! From basic wiring techniques to advanced system integrations, this roundup will leave you in the know about everything you need to get your motors purring like a well-oiled machine. So let's dive right in and explore the diverse realm of motor wiring.
As an Amazon Affiliate™ we may earn from qualifying purchases at no cost to you
Introducing the GearIT 16/4 16 AWG Portable Power Cable, a sturdy and versatile option for all your industrial, commercial, and outdoor needs. With an impressive 4-conductor SOOW 600V 16 Gauge Electric Wire, it's designed to handle motor leads, portable lights, battery chargers, stage lights, and machinery with ease. You can count on this reliable cable to withstand even the harshest of conditions, thanks to its durable rubber jacket providing resistance to oils, acids, water, and chemicals. But it's not just tough - this cable is also packed with features to make your life easier.
The 16 Gauge 4-Conductor OFC (Oxygen Free Copper) cable offers optimal conductivity to carry more current, thanks to its higher corrosion resistance and improved heat absorption. ETL Listed ensures a safe performance in any environment, and this cable comes in a convenient 25-foot package. So, whether you're powering up a stage, working on a mining site, exploring oil and gas, or operating in a marine environment, the GearIT 16/4 16 AWG Portable Power Cable is your go-to choice for reliable and durable industrial connections. Embrace the convenience and power of the GearIT, and let it help you stay connected no matter the situation.
Over the years, I've become pretty handy with car maintenance, and I must say - trying the Standard Motor Products C12e Primary Wire has been a game-changer for me.
First things first, the wire quality is sturdy, and the braid makes it look pretty neat under the hood. However, one thing I noticed is that it can be a bit hard to fit into some tight spaces.
Despite its snugness, once it's in place, the wire does its job well. The spark plug connection is solid, ensuring smooth ignition. But, there's definitely room for improvement when it comes to ease of use.
All in all, the Standard Motor Products C12e Primary Wire gets the job done, but I can't wait to find something a bit more user-friendly.
Experience the versatility of the GearIT 16/4 16 AWG Portable Power Cable with its 25-foot length and 4-conductor nature. This cable is designed for motor leads, portable lights, battery chargers, stage lights, and machinery, making it an invaluable tool in a wide range of settings. Perfect for both adults and teens, this cable is both oil, water, and chemical resistant, offering safety and durability in even the most challenging environments. With a 16-gauge 4-conductor OFC (Oxygen-Free Copper) core, the cable provides increased conductivity and resistance to heat and corrosion over non-OFC alternatives. ETL-listed, this SJOOW electrical cable offers safe performance in harsh conditions, making it a go-to choice for power generation, mining, oil and gas exploration, and marine environments.
GearIT cables simplify your life with their heavy-duty, user-friendly designs. With their 4-conductor structure and 16-gauge OFC core, these cables are perfect for industrial and commercial applications where robustness is essential. Embrace the challenge and stay connected with the GearIT 16/4 16 AWG Portable Power Cable.
This 22FT fiberglass running wire cable electrical fish tape kit offers a low-friction design, making it easy to navigate through conduits without binding at turns or joints. It includes 16 rods, each 1.4 feet long, and a range of attachments for different applications.
With flexibility, rigidity, great insulation, and resistance against wear, corrosion, and oxidation, this fish tape kit is perfect for running wires in walls, attics, crawl spaces, sub-floors, and suspended ceilings. Its bright green color aids in locating and differentiating the rods from wires, and a convenient plastic storage case is included.
When it comes to marine-grade outdoor power wires, few products shine as brightly as the DS18 Hydro Marine Grade OFC Power Wire. This top-notch wire is specifically designed for the outdoor enthusiast and sports lover, ensuring optimal performance no matter the environment. Built with durability in mind, this wire is engineered to withstand even the most challenging conditions, providing a long-lasting solution for all your power needs.
Its 0 ga size and 25-foot length make it a practical choice for various settings, and its marine-grade materials ensure resistance to rust and corrosion. Whether you're looking to equip your boat or set up your backyard barbecue area, the DS18 Hydro Marine Grade OFC Power Wire is a perfect addition. A must-have for anyone seeking reliable power connections, it is not just a wire, but a reliable partner for any outdoor adventure.

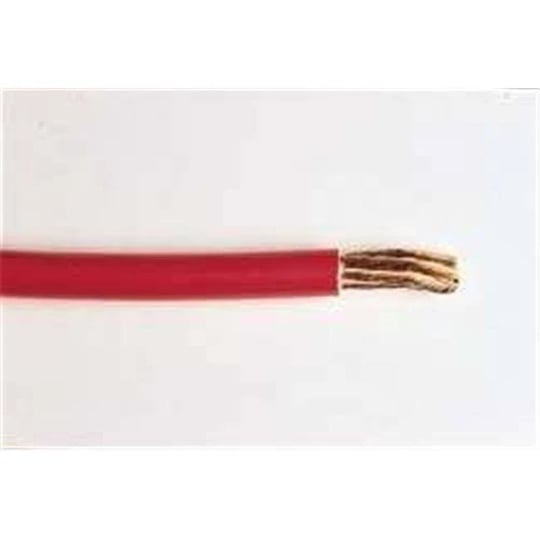

This East Penn 100 ft. starter wire cable is a versatile and durable option for heavy-duty automotive applications. With its full-gauge copper conductor wire and high temperature PVC insulation, this cable can handle demanding situations with ease.
It is RoHS compliant, non-lead, and meets both SAE J1128 and SAE J378 standards, ensuring top-notch performance in a variety of settings. The cable's temperature rating of 50°C to 105°C (58°F to 221°F) provides excellent resistance against heat, while its highly conductive copper stranding enables seamless current transfer. This flexible cable comes in 100-foot spools and is perfect for connecting batteries to switches, starters, and grounds.

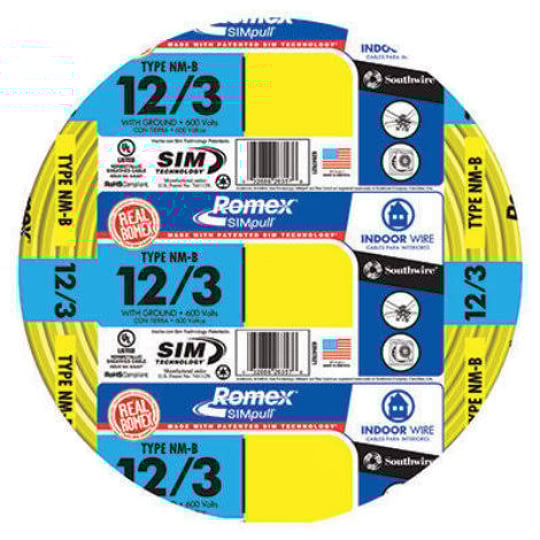

The Wire 12/3 Nm-Wg 25' offers a reliable and efficient solution for your residential wiring needs. With its patented SIMpull Cable Jacket, the installation process becomes easier than ever before. Whether you're working with exposed or concealed wiring, this cable can handle the task with ease.
Designed for use in normally dry locations, the Wire 12/3 Nm-Wg 25' can withstand temperatures up to 90°C. It's primarily used as a branch circuit for outlets, switches, and other loads in residential applications.
The cable is rated for a voltage of 600 volts and features a four-conductor setup with two neutrals. Its color-coded jacket, along with its UL-listed status, ensures that it adheres to federal specifications and safety regulations, such as the 2011 National Electrical Code (NFPA 70).
One of the standout features of this cable is its tear resistance and reduced burn-thru properties, thanks to the SIMpull Cable Jacket. It's also RoHS compliant and features a red stripe for easy identification.
However, it's essential to note that this cable should only be installed above ground and in completely dry locations. Despite this limitation, the Wire 12/3 Nm-Wg 25' is a highly rated, durable, and practical choice for residential wiring projects, earning a 4.5-star rating from users and 37 reviews.
Southwire Building Wire is a high-quality option for residential and commercial wiring. I recently had to install a new outlet in my kitchen, and this type NM-B cable was the perfect choice. Its crush-resistant and flame-retardant features made me confident in using it in my home.
Plus, the bright yellow jacket and PVC insulated conductors made it easy for me to identify and use the cable. The cable was also easy to install, which I appreciated. However, I noticed that the cable was not suitable for direct burial or wet locations, which might be a drawback for some users.
Overall, Southwire Building Wire is a well-made and durable product that is definitely worth the investment.
Southwire's Romex SIMpull Type NM-B may be the ideal wire choice for your motor wiring project. The product boasts easy installation, thanks to its patented SIMpull Cable Jacket coating that makes pulling, stripping, and installation a breeze. It's a high-quality, reliable wire, with 3 conductors and a ground included, perfect for residential wiring, running in indoor air voids, and reaching temperatures up to 90°C (with the ampacity limited to that for 60°C conductors), according to the 2011 National Electrical Code.
This wire is suitable for nonmetallic sheathed cable usage in normally dry locations and boasts a voltage rating of 600V. It's a sturdily made wire with a copper conductor material and a copper ground material, ensuring its longevity and reliability.
Furthermore, the wire is UL Listed, making it a safe choice. This wire measures 25 feet per coil and is designed for indoor use, though it's not suitable for direct burial. The product is black in color and is stranded.
Despite the relatively unknown product name, it has a great delivery experience according to customer reviews, with a '5' rating on the product's overall value. This product comes at a reasonable price and boasts fast shipping, adding to its appeal.
The website for order placement is also easy to navigate. Overall, this Southwire Romex SIMpull Type NM-B wire is a quality product that doesn't compromise on safety or functionality.

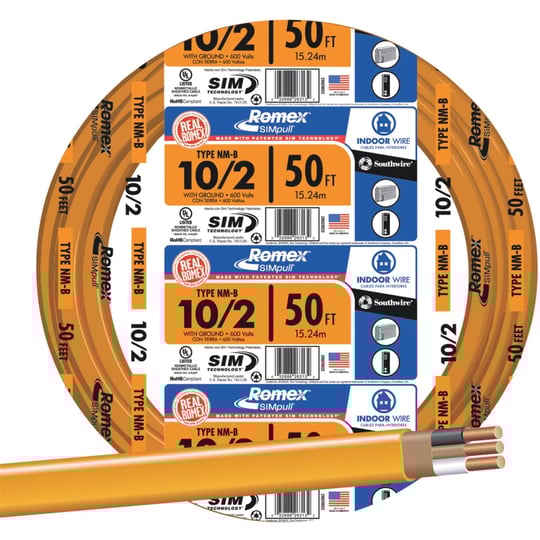

If you're in the market for a quality wire that can handle up to 30 amps, Southwire's Romex Type NM-B Copper Building Wire is a solid choice. Coated in a sturdy PVC jacket, it's perfect for dry indoor environments and can even be run through walls, ceilings, and masonry blocks with ease. The cable's gauge of 10 provides a balance between flexibility and durability, making it ideal for a range of applications.
What sets this wire apart, however, is the ease of installation. The patented SIMpull Cable Jacket makes pulling, stripping, and installation a breeze, even for those who might not have a lot of experience with electrical wiring. Users especially appreciate this feature, with many reviewers noting how "easy to work with" the wire is.
Despite its many positives, the Southwire Wire does have a couple of drawbacks. Firstly, it can only be used in dry locations above ground, so it's not suitable for outdoor or wet area installations. Secondly, while the wire is UL listed, it has a temperature rating of just 90 degrees Celsius, which might limit its use in some higher-demand applications.
In terms of value, users seem to be pretty happy with their purchase. The Southwire Wire is priced competitively and many reviewers note that they got a good deal, with some even mentioning they found the product for a lower price online. The fact that the wire is readily available in various lengths can also be seen as a plus.
Overall, the Southwire Wire 10/2 is a solid choice for those looking for a reliable and easy-to-install cable that can handle a decent amount of current. While it has its limitations, many users find the benefits well worth the investment.
These sturdy wire spools offer a whopping 100' length, making them perfect for a wide range of projects in different settings such as cars, homes, and theaters. With a 14 gauge thickness, their copper clad aluminum strands ensure durability and performance.
The PVC jacketing provides both flexibility and protection, rendering these wires suitable for automotive, theater, and other applications requiring voltages from 6 to 80. Rated at a high 158°F, these versatile wires can withstand a broad temperature range, making them a reliable pick for any project. The fact that they can be used with a 12 volt home system or even more complex automotive projects certainly broadens their appeal.
Despite its excellent performance, this wire does not conform to the AWG American Wire Gauge, so be cautious when comparing it with other types of wire. With a multitude of available striped tracer wires in different colors, it's easy to choose a wire that matches your project's specifications. Overall, users seem thoroughly satisfied with this wire, giving it an excellent 4.7 rating based on 35 reviews.
Earlier this week, I decided to try out the Southwire Romex SIMpull Type NM-B 10/3 non-metallic sheathed cable. This product, as you can see from its highlights, is primarily used in residential wiring as branch circuits for outlets, switches and various other loads. It comes with copper conductors, and can be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C.
Something that particularly struck me about this product was its simplicity and user-friendliness. The construction is designed for easier pulling, which makes it very convenient to use, especially if you're planning to cover a long distance.
What stood out most was how this cable tears less and strips easier too. This was a relief when I was dealing with sharp walls and joists.
However, the one con was that the jacket could have been sturdier. A couple of times, I did run into some minor tearing on the outer sheathing.
Overall, the Romex SIMpull Type NM-B 10/3 cable offers an excellent value for its price. It's a great, all-purpose wire that can handle your general household electrical needs effortlessly. It's versatile, durable and, considering its price, an extremely economical choice. But don't forget to be cautious during pulling, just to prevent any damage.
Recently, I've been using the Grand General 100' Parallel Primary 3-Wire Roll for all my automotive wiring needs. It's been a fantastic addition to my toolkit, and it's especially useful when working on larger vehicles like trucks, trailers, or buses. The spool roll is incredibly convenient, as it saves time and hassle compared to reeling off wire from a spool.
However, one area I found particularly impressive was the PVC outer-jacket's flexibility. It resists water, chemicals, oil, and abrasion, making it a reliable choice for any harsh environments. The smooth surface makes it effortless to pull through loom and tubing. The wire's temperature range is also excellent, with a tolerance up to 105 degrees Celsius.
Nevertheless, there is one small downside I encountered; the Grand General roll is only sold individually, so if you're working on multiple vehicles or need a spare, you might need to place additional orders. Nonetheless, overall it's a top-quality product for vehicle wiring and I highly recommend it.
Romex SIMpull 14/2NM-WGX250 Building Wire offers an exceptional range of features, making installation simple and hassle-free. With its sturdy construction, this wire can successfully handle various applications in indoor settings. The wire is lightweight, which is beneficial when carrying or working with it. One of the unique aspects of this wire is its SlikQuik infused membrane jacket, which results in 50% reduction in pulling force.
With its 15-amp amp rating, this wire efficiently manages power distribution in lighting and other circuits. The inner conductor is of type THHN and comes with a temperature rating of 90 degrees Celsius. The outer jacket is made of PVC and is also rated at 75 degrees Celsius. However, it is essential to note that this product cannot be used in direct burial situations. Additionally, the cable's amp rating is limited to that for 60-degree Celsius rated conductors in line with the National Electric Code Article 336.
Users appreciate the ease of installation and reliability of this wire. Many report positive experiences using it for home improvement projects, with some even stating that they would purchase it again for future renovations. Despite some limitations in terms of its use, the Romex SIMpull 14/2NM-WGX250 Building Wire proves a valuable addition to any builder's toolbox.

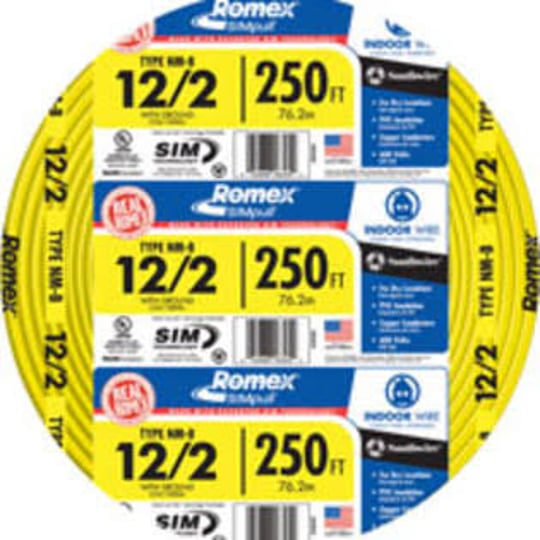

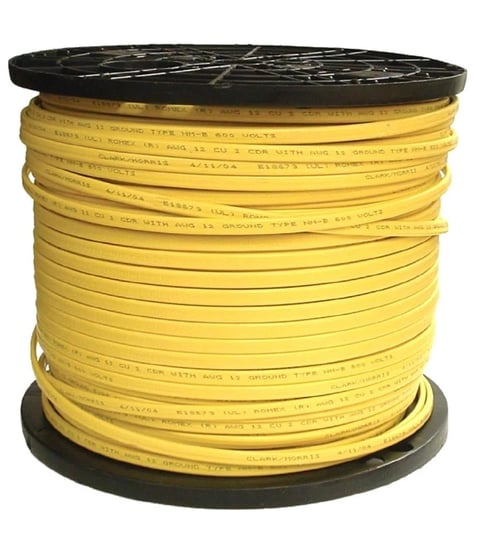

As a homeowner, I found the 12/2 Romex NM-B Copper Wire to be an essential part of my DIY projects. This wire is perfect for residential building wiring and is commonly used for switches and outlets. The patented SIMpull Cable Jacket makes pulling, stripping, and installation much easier, leading to smooth and stress-free installation. However, it's essential to remember that this wire is only suitable for above-ground and dry location installations.
The wire's 600-volt voltage rating and 90-degree Celsius conductor temperature rating provide a safe and reliable connection for various home appliances. I particularly liked the bright yellow color-coding, which made it easy to identify and safely distinguish between different wires when working on complex wiring projects. The wire's solid construction and sturdy outer jacket made it durable and long-lasting, ensuring that it maintained its structural integrity even after multiple pulls and installations.
One downside I discovered was that the wire's solid construction made it a bit more challenging to run through tight spaces or around corners. Additionally, the wire's bright yellow color-coding made it more visible to curious little mice and other small creatures, which was a lesson I learned the hard way during my home project.
In conclusion, the Romex NM-B Copper Wire is an excellent choice for DIY homeowners and electricians looking for reliable, durable, and easy-to-install wiring. While there were some minor challenges during installation, overall, I had a positive experience using this product and highly recommend it to others.
I recently got my hands on the Grand General 55251 Red 12-Gauge Primary Wire, and let me tell you, it's been a game changer. With my car constantly being on the road, the reliable wiring has been a lifesaver. As someone who's always on the move, this 25-foot spool is perfect for my needs, especially since it's made for trucks, automobiles, trailers, tractors, and more.
What really stands out is the flexible red PVC outer-jacket that resists water, chemicals, oil, and abrasion. Say goodbye to those pesky, tangly wires we're all too familiar with, and hello to a smooth surface that glides through loom and tubing with ease. The temperature range of up to 105C is also a significant plus, allowing for consistent performance in less-than-ideal conditions.
However, there are a couple of things that could be improved. The product is available in various gauges, but I wish there was a clearer distinction between the intended uses for each gauge. Additionally, the fact that the wire is made in China is a minor concern for some potential buyers.
Overall, the Grand General 55251 Red 12-Gauge Primary Wire has been a breath of fresh air in my daily life, and I can't imagine doing without it now.
Southwire's Romex SIMpull Type NM-B has become my go-to choice for all electrical projects around the house. The copper conductors ensure a strong connection, while the non-metallic sheathing keeps things neat and organized. I particularly love the easy installation process, as it cuts down on the hassle of dealing with fussy wires.
One of the coolest features I've discovered is the SIM jacket designed for easier pulling. It really does make the process of pulling the wire through walls and other tight spaces a breeze. I also appreciate the high-quality standard set by the UL Approval, giving me peace of mind when installing the wiring.
On the downside, the 50-foot length might not be the most convenient for larger projects, as I often find myself needing more wire than what's initially provided. However, the 600V voltage capacity and the variety of color-coded jackets available cater to a range of applications, making it versatile despite its limitations.
Overall, Southwire's Romex SIMpull Type NM-B has proven to be a reliable and user-friendly option for all my electrical needs. The wire's quality and the ease with which it can be installed more than make up for its shortcomings, making it a top contender in my book!

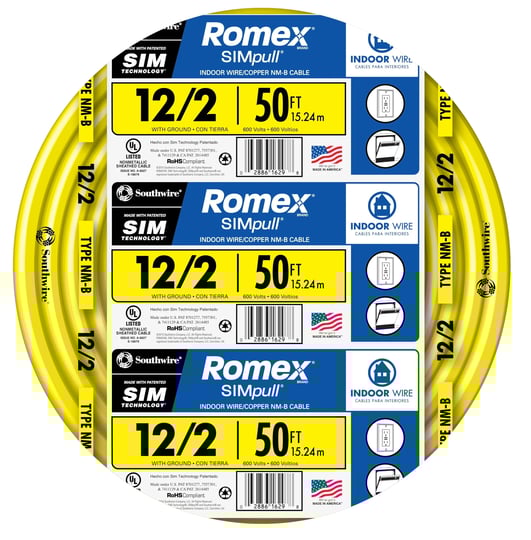

Southwire's 12-2 NM-B wire has been a trusty companion in my wiring projects. I've used it to rewire an entire basement and found it sturdy and easy to work with. Its yellow PVC jacket is not only eye-catching but also durable and resistant to wear and tear.
The wire's performance exceeded my expectations. I managed to run it through my studwork without any issues - a testament to its flexibility. One of the things I appreciated most was how the wire didn't kink or twist easily.
Despite its advantages, the wire may not meet everyone's needs. It's specifically designed for use in residential and commercial wiring of branch circuits, and isn't suitable for all environments or applications. It should only be installed above ground in dry locations.
In conclusion, if you're looking for a reliable and sturdy wire for your residential or commercial wiring needs, this is a great option. It's easy to use, well made, and delivers excellent performance. However, ensure the installation conditions meet the guidelines stated in the product description.

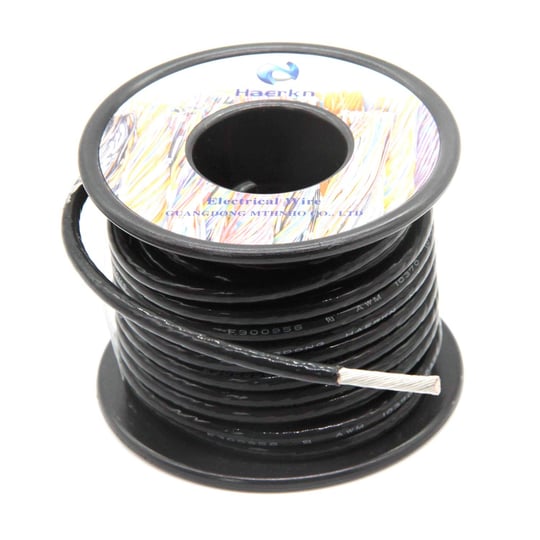

High-Quality Marine Grade Electrical Wire (10 Gauge, 25 feet) for Automotive & High Temperature Applications
Every time I found myself needing an electrical wire to fix my car, I would get frustrated with the regular ones that would melt away in seconds. That was until I discovered this nifty little thing called a "10 Gauge Electrical Wire" from the wonderful Marine Grade collection.
What made this wire stand out for me was its high-temperature resistance. It could withstand temperatures as low as -60 degrees Celsius and as high as 200 degrees Celsius. Sounds like a perfect friend for those sunny beach roads.
But let's talk about the wire itself. With 37 strands of 0.45 mm Tinned copper, you know you were getting yourself a top-notch product. The "10 AWG Stranded of Tinned" part added that extra layer of strength which is essential for those tough, under-the-hood conditions.
Despite its ruggedness, I did find the 25-foot length a tad shorter than what I usually needed. But a little more wire wouldn't hurt, right?
So there you have it, a sturdy, reliable, and high-temperature resistant electrical wire that saved the day for my car's battery. What more could you ask for?
Motor wiring is a crucial aspect of any automotive or industrial machine, as it ensures smooth and efficient power distribution to various components. In this buyer's guide, we will discuss important features, considerations, and general advice to help you make an informed decision when selecting motor wiring solutions for your needs.
When evaluating motor wiring options, consider the following key features:
- Material Type 2. Conductor Size 3. Insulation Quality 4. Flexibility and Durability 5. Compatibility with Different Motor Types and Sizes 6. Cost-effectiveness 7. Safety Rating and Certifications. These factors will help you choose a motor wiring solution that meets your specific requirements and ensures the optimal performance of your machinery.
Before selecting motor wiring, consider the following factors:
- Application and Environment 2. Power Requirements 3. Operating Environment Temperature 4. Vibration Levels 5. Chemical Exposure 6. Safety Requirements 7. Ease of Installation and Maintenance. By taking these factors into account, you can ensure that the motor wiring you choose is suitable for your specific application and environment.
- Perform a thorough analysis of your application and requirements. 2. Research different motor wiring options and compare their features and specifications. 3. Consult with industry experts, manufacturers, or distributors for advice and recommendations. 4. Consider the long-term investment and maintenance costs. 5. Ensure the motor wiring solution meets all relevant safety standards and certifications.
- Follow the manufacturer's instructions for installation and maintenance. 2. Regularly inspect the motor wiring for signs of wear, damage, or corrosion. 3. Ensure proper connections and terminations to prevent electrical faults or short circuits. 4. Implement preventive maintenance practices to prolong the lifespan of your motor wiring. 5. Maintain a clean and organized workspace to prevent contamination or damage to the motor wiring.
To operate an electric motor, we need to connect and configure electrical wires through the process known as motor wiring. This involves setting up power, ground, and control lines to ensure that the motor functions effectively and efficiently within the system. By enabling the motor to receive energy, communicate with the control unit, and operate within safety parameters, motor wiring is essential for achieving optimal performance.
While motor wiring may seem daunting due to its complexity, understanding specific motor types, pin configurations, and wiring standards is key to avoiding compatibility issues and ensuring smooth operation. Moreover, adhering to safety guidelines and seeking professional help are essential to avoid any hazards or damage to the motor or the entire system.
Motor wiring is applicable to various motor types, including AC induction motors, DC motors, servo motors, and stepper motors. Each motor type requires unique wiring configurations that must be followed to prevent compatibility issues and guarantee smooth operation. Proper motor wiring is critical for ensuring safe and efficient operation, as well as achieving optimal performance.
Selecting the right motor wiring kit or tools is vital for ensuring a successful wiring process. Additionally, understanding the motor's wiring diagram and connections, as well as familiarizing oneself with wiring guidelines and safety protocols, can help prevent mistakes and hazards. In some cases, consulting with an electrician or motor specialist may be beneficial in ensuring proper motor wiring.
Motor wiring requires specific tools to ensure the proper installation and connection of wires to the motor. Common tools required for motor wiring include pliers, wire strippers, soldering iron or crimping tool, a multimeter, and electrical tape. The choice of tools may vary depending on the motor type and the wiring method used. Proper handling of tools is crucial to maintain safety, while wearing appropriate personal protective equipment like gloves and goggles can help prevent burns and electrical hazards.
Storing tools in a safe and organized manner is also important to prevent injury or damage to the tools themselves. Always consult the motor manufacturer's guidelines or seek professional help if unsure about the tools required for motor wiring. Remember that having the right set of tools can prevent damage to the motor or wires and ensure a secure and safe connection.
While motor wiring can be done by oneself, it's always best to seek professional help if you're not confident in your skills or if you're wiring a motor for the first time. Motor wiring can be hazardous if not done correctly, and improper wiring can lead to damage to the motor or even personal harm. Additionally, wiring a motor incorrectly can lead to frequent breakdowns, reduced efficiency, and safety issues.
Seeking professional help ensures that the wiring is done correctly and safely, as electricians or motor experts have the necessary experience, skills, and knowledge to perform this task accurately. They can also provide guidance on the specific wiring requirements for your motor type and the wiring method used. Entrusting the wiring process to a professional can, in the long run, save time, money, and ensure a safer and more efficient motor operation.
When choosing motor wiring kits or tools, consider compatibility with the motor type, the wiring method used, and safety guidelines. Compatibility is essential to ensure a successful wiring process and to avoid compatibility issues. Additionally, ensure that you understand and follow safety guidelines such as using appropriate personal protective equipment and taking precautions against electrical hazards.
Furthermore, selecting reliable and high-quality wiring kits and tools is important to ensure durability and longevity. Reading customer reviews and seeking expert advice can help in making an informed decision. Always ensure that the wiring kit or tool comes with clear instructions and guidelines, which can be helpful in understanding the specific wiring requirements and the correct usage of the tools.
When motor wiring, common mistakes can be avoided by following safety guidelines and proper wiring techniques. Some common mistakes include wiring the motor with reversed polarity, forgetting to ground the motor, using the wrong wiring configuration or pinouts, and not securing the connections properly. Other mistakes include not using proper wiring insulation, not using the appropriate connector, and not following the manufacturer's guidelines.
Avoiding these mistakes can prevent damage to the motor, reduce downtime, and ensure the motor operates efficiently and safely. It's essential to understand the specific wiring requirements for your motor type and the wiring method used, and to consult with a professional if unsure or inexperienced. Proper motor wiring not only ensures the safe and efficient operation of the motor but also extends its lifespan and reduces maintenance costs.
