Lua Telemetry Flight Status Screen for INAV/Taranis

Notice If you get the message Script Panic not enough memory you've run out of memory on your transmitter. This happens if you have too many Lua scripts running (this includes model, function, and telemetry scripts). It's also possible that you have less memory to work with when running firmware that uses more memory (for example, firmware that includes multimodule support). Using firmware with luac included should reduce memory usage and increase the telemetry screen speed.

Taranis Q X7

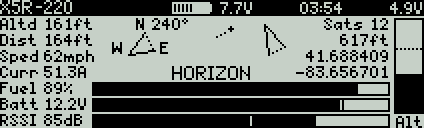

Taranis X9D, X9D+ & X9E

Features

• Launch-based model orientation and location indicators (great for lost orientation or if you lose site of your model)
• Compass-based direction indicator
• Bar graphs for Fuel (% battery mAh capacity remaining), Battery voltage, RSSI strength, Tx battery (and Altitude for X9D, X9D+ & X9E transmitters)
• Display and speech notifications of flight modes and other flight status information (altitude hold, heading hold, etc.)
• Speech notifications for % battery remaining (based on current), voltage low/critical, high altitude, lost GPS, ready to arm, armed, disarmed, etc.
• GPS information: Satellites locked, GPS altitude, GPS coordinates
• Display of current/maximum: Altitude, Distance, Speed and Current
• Display of current/minimum: Battery voltage, RSSI strength
• Display of current Fuel (% battery mAh capacity remaining), Rx voltage and automatic flight timer

Requirements

• OpenTX v2.2.0 running on Taranis Q X7, X9D, X9D+ & X9E
• A FrSky receiver that supports telemetry, such as X4R(SB), X8R, XSR, R-XSR, XSR-M, XSR-E, etc.
• INAV v1.7.3+ running on your flight controller
• GPS, altimeter, and compass sensors

Notes

• Designed for the Taranis Q X7, X9D, X9D+ & X9E
• Designed for multirotor models, but should be valuable for fixed wing (fixed wing feedback would be appreciated)
• Optional amperage sensor needed for fuel and current displays
• Uses Taranis settings for RSSI warning/critical levels for graph range and audio/haptic warnings
• Uses Taranis settings for transmitter voltage min/max for battery graphic in screen title

Setup

In INAV Configurator

1. Setup telemetry to send to your transmitter - INAV telemetry docs
2. If you have an amperage sensor, configure battery_capacity and set smartport_fuel_percent = ON in CLI settings

From Transmitter

1. Discover telemetry sensors with battery connected and after GPS fix so all telemetry sensors are discovered
2. Telemetry distance sensor name must be changed from 0420 to Dist
3. Sensors must be changed to US measurements (m to ft, km/h to mph, etc) for proper calibration

INAV Lua Telemetry Screen Setup

1. Copy iNav.lua file to Taranis SD card's \SCRIPTS\TELEMETRY\ folder
2. Copy iNav folder to Taranis SD card's \SCRIPTS\TELEMETRY\ folder
3. In model setup, page to DISPLAY, set desired screen to Script, and select iNav

Usage

Screen Description

From the Taranis main screen, hold the Page button to show custom screens, then page to the screen you set to show iNav. Flashing values are either because there's no telemetry or a warning. To flip between max/min values and current values, use the dial or +/- buttons. To flip between compass-based direction and launch-based orientation and location, use the dial or +/- buttons. If model is further than 25 feet away, the launch direction view will show the direction of the model based upon launch position and orientation. This can be used to locate a lost model, using the launch-based model location indicator and distance. The launch-based orientation view is useful if model orientation is unknown. The script gives audio feedback for flight modes, battery levels, and warnings (no need to manually set this up for each model). Audio feedback will play in background even if iNav LuaTelemetry screen is not displayed.

Release History

v1.1.1 - 09/28/2017

• Refactored code to reduce memory
• Removed alititude graph for X9D, X9D+ & X9E transmitters (used too much memory?)

v1.1.0 - 09/22/2017

• Repo moved to INAVFlight
• Screen formatting for Taranis X9D, X9D+ & X9E

v1.0.0 - 09/19/2017

• Initial release

Todo

• Automatically switch between metric and imperial (currently fixed to imperial)
• Possible option to display value of timer instead of automatic flight timer built into script
• Options for when speech/sound files play (may be too chatty for some)
