SmartPort/INAV Telemetry Flight Status - v1.1.6

Taranis Q X7

Taranis X9D, X9D Plus & X9E

Features

• Launch/pilot-based model orientation and location indicators (great for lost orientation or if you lose sight of your model)
• Compass-based direction indicator
• Bar gauges for Fuel (% battery mAh capacity remaining), Battery voltage, RSSI strength, Transmitter battery (and Altitude for X9D, X9D Plus & X9E transmitters)
• Display and voice alerts for flight modes and flight mode modifiers (altitude hold, heading hold, home reset, etc.)
• Voice notifications for % battery remaining (based on current), voltage low/critical, high altitude, lost GPS, ready to arm, armed, disarmed, etc.
• GPS information: Satellites locked, GPS altitude, GPS coordinates
• Display of current/maximum: Altitude, Distance, Speed and Current
• Display of current/minimum: Battery voltage, RSSI strength
• Display of current Fuel (% battery mAh capacity remaining), Receiver voltage and flight timer
• Speed and distance values are displayed in metric or imperial based on transmitter's telemetry settings

Requirements

• OpenTX v2.2.0+ running on Taranis Q X7, X9D, X9D Plus or X9E
• SmartPort telemetry compatible receiver: X4R(SB), X8R, XSR, R-XSR, XSR-M, XSR-E, etc. (NOT D-series receivers)
• INAV v1.7.3+ running on your flight controller
• GPS, altimeter (barometer), and magnetometer (compass) sensors

Note: This Lua Telemetry script requires SmartPort telemetry as noted above. Lua Telemetry won't work with Crossfire for example because it uses proprietary sensor names/formatting and missing sensor information that Lua Telemetry needs.

Setup

In INAV Configurator

1. Setup SmartPort telemetry to send to your transmitter - INAV telemetry docs
2. If you have an amperage sensor (which I highly suggest), configure battery_capacity to the mAh you want to draw from your battery and set smartport_fuel_percent = ON in CLI settings (allows proper calibration of fuel used percentage)

From Transmitter

1. With battery connected and after GPS fix discover telemetry sensors so all telemetry sensors are discovered
2. Telemetry distance sensor name must be changed from 0420 to Dist
3. Dist, Alt, GAlt & Gspd sensors can be changed from meters/kmh to feet/mph
4. Don't change Tmp1 or Tmp2 from Celsius to Fahrenheit! They're not really temperatures but used for flight modes and GPS information

INAV Lua Telemetry Screen Setup

1. Download the Lua Telemetry ZIP file by clicking the green Clone or download button towards the top right and select Download ZIP
2. From the downloaded LuaTelemetry.zip, copy the iNav.lua file to the transmitter's SD card's \SCRIPTS\TELEMETRY\ folder
3. Also from the ZIP file, copy the iNav folder to the transmitter's SD card's \SCRIPTS\TELEMETRY\ folder
4. In model setup, page to DISPLAY, set desired screen to Script, and select iNav

Notice

If you get the message Script Panic not enough memory you've run out of memory on your transmitter. This happens if you have too many Lua scripts running (this includes model, function, and telemetry scripts). It's also possible that you have less memory to work with when running firmware that uses more memory (for example, using firmware that includes multimodule support if you're not using it). Using transmitter firmware with luac included will reduce memory usage and increase the telemetry screen speed.

Usage

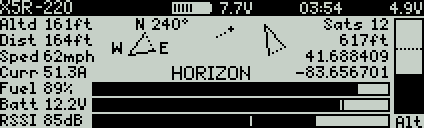

Screen Description

• From the transmitter's main screen, hold the Page button to show custom screens, then page to the screen you set to show iNav
• Flashing values indicate a warning (for example: no telemetry, battery low, altitude too high)
• To flip between max/min and current values, use the dial or +/- buttons
• To flip between compass-based direction and launch/pilot-based orientation and location, use the dial or +/- buttons
• The launch/pilot-based orientation view is useful if model orientation is unknown
• If model is further than 25 feet away, the launch/pilot-based view will show the direction of the model based upon launch/pilot position and orientation (useful to locate a lost model)
• The script gives voice feedback for flight modes, battery levels, and warnings (no need to manually set this up for each model)
• Voice alerts will play in background even if iNav Lua Telemetry screen is not displayed

User Setting

At the top of the iNav.lua file a value can be modified to change how the battery voltage is displayed.

• SHOW_CELL false = Show total battery voltage / true = Show cell average (default = false)
• WAVPATH Path on your transmitter's SD card to the Lua Telemetry sound files (default = "/SCRIPTS/TELEMETRY/iNav/")

Tips & Notes

• Between flights (before armed), long-press the Enter/dial and select Reset telemetry to reset telemetry values
• Designed for multirotor models, but should be valuable for fixed wing (fixed wing feedback appreciated)
• Optional (but highly suggested) current sensor needed for fuel and current displays
• Uses transmitter settings for RSSI warning/critical levels for bar gauge range and audio/haptic warnings
• Uses transmitter settings for transmitter voltage min/max for battery bar gauge in screen title
• If you're not getting model distance data, change your telemetry distance sensor name from 0420 to Dist
• INAV v1.8+ is required for Home reset voice notification

Release History

v1.1.6

• On home reset, reset GPS home position, orientation and distance
• Option to display average battery cell voltage instead of total voltage
• Extra digit for data on X9D & X9D Plus transmitters
• Variable cleanup saving memory

v1.1.5 - 10/20/2017

• Voice notification for Home Reset with INAV v1.8+
• Moved head free warning on Q X7 to top center
• Values convert from decimal to integer when larger to allow for more room
• Better text centering and right justification technique
• Cleaned up code saving more memory

v1.1.4 - 10/13/2017

• More accurate max altitude alerts and altitude flashes when above max altitude
• Long-press resets values (suggest doing this between flights before armed)

v1.1.3 - 10/10/2017

• Shows metric or imperial values based on transmitter telemetry settings

v1.1.2 - 10/06/2017

• Lots of refactoring which greatly reduced memory usage
• Re-enabled altitude bar gauge for X9D, X9D Plus & X9E transmitters
• Better information layout if no current sensor is present
• Refactored GPS lock calculation to prevent script syntax errors

v1.1.1 - 09/28/2017

• Refactored code to reduce memory
• Removed altitude bar gauge for X9D, X9D Plus & X9E transmitters (used too much memory?)

v1.1.0 - 09/22/2017

• Repo moved to INAVFlight
• Screen formatting for Taranis X9D, X9D Plus & X9E

v1.0.0 - 09/19/2017

• Initial release

License

MIT
